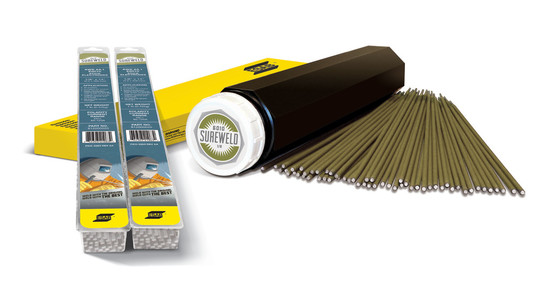

ESAB SUREWELD® 6011

Sureweld 6011 is an all-position, cellulosic type electrode designed for AC. It produces an easily controlled forceful arc with deep penetration and a high quality weld metal which will pass specification requirements for radiography. Sureweld 6011 is used primarily for welding mild steels such as ASTM A-36, A-283, A-284, A-285, A-515, A516 and ABS hull and boiler steel. Typical applications include welding of buildings, piping, shipbuilding, pressure vessels and tanks. AC-DCEP (Electrode Positive).

• Industrial and General Fabrication
• Mobile Equipment
• Ship/Barge Building
• SMAW/MMA (Stick)
• PRODUCT DATA SHEET

Typical Weld Metal Analysis %

Element	C	Mn	Si	S	P
Nominal Percentage	0.10 %	0.36 %	0.15 %	0.012 %	0.012 %

Classifications

Name	AWS A5.1
Grade	E6011

Consumable Characteristics

Welding Current	AC or DC+
	0
Coating Type	High cellulose

Typical Tensile Properties

Condition	Elongation	Reduction in Area	Tensile Strength (imp)	Yield Strength (imp)
As Welded	22 %	56 %	524 MPa (76 ksi)	462 MPa (67 ksi)

Deposition Data

Current	60-80 A
Deposition Rate	0.9 kg/h (2 lb/h)
Diameter	2.4 mm (3/32 in.)
Efficiency (%)	60 %
Optimal Amps	70 A

Current	85-120 A
Deposition Rate	1.1 kg/h (2.4 lb/h)
Diameter	3.2 mm (1/8 in.)
Efficiency (%)	70 %
Optimal Amps	100 A

Current	140-175 A
Deposition Rate	1.7 kg/h (3.7 lb/h)
Diameter	4.0 mm (5/32 in.)
Efficiency (%)	77 %
Optimal Amps	140 A

Current	170-210 A
Deposition Rate	1.8 kg/h (4.1 lb/h)
Diameter	5.0 mm (3/16 in.)
Efficiency (%)	73 %
Optimal Amps	180 A
